ONE WALL-MOUNTED STATION. MORE WAYS TO TRAIN.

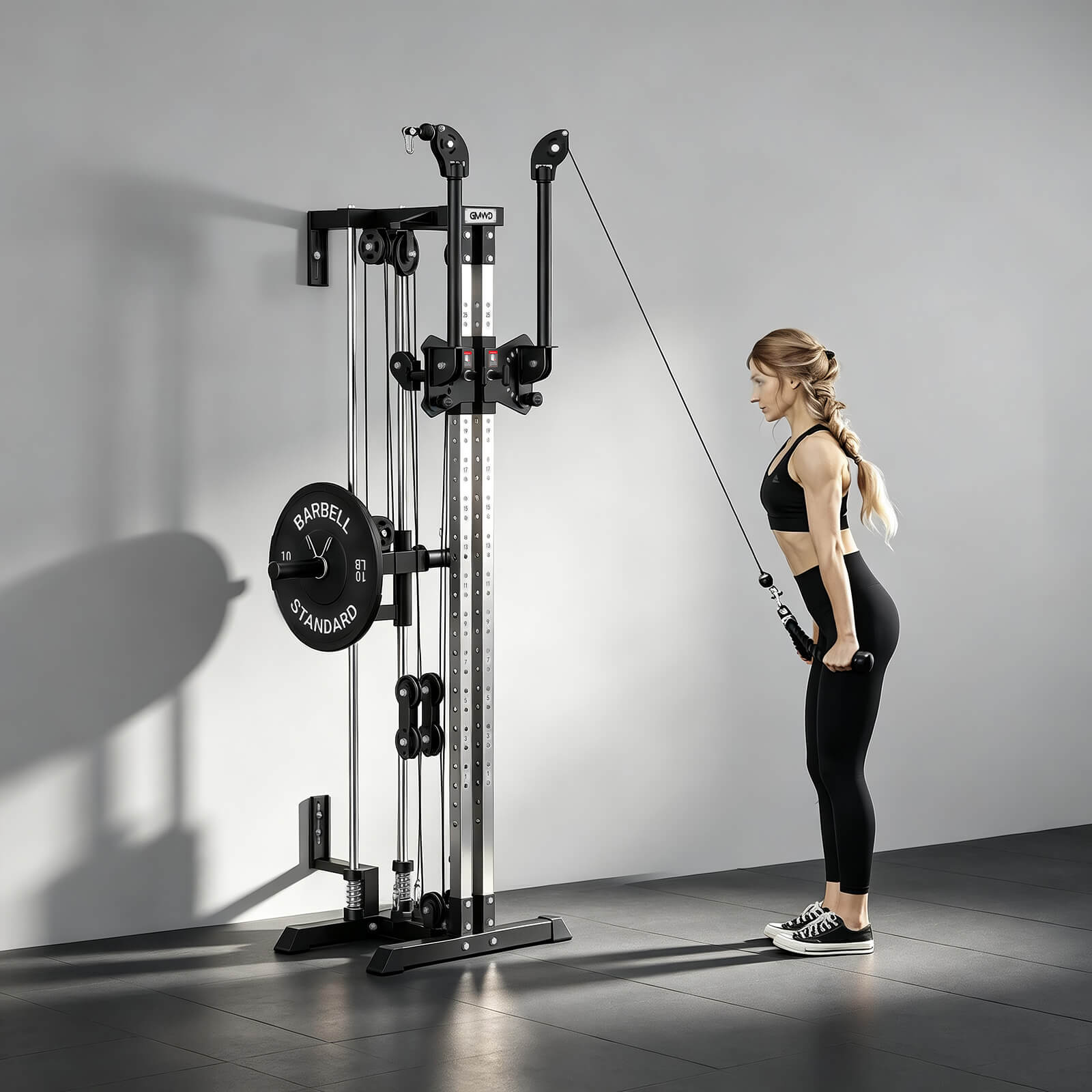

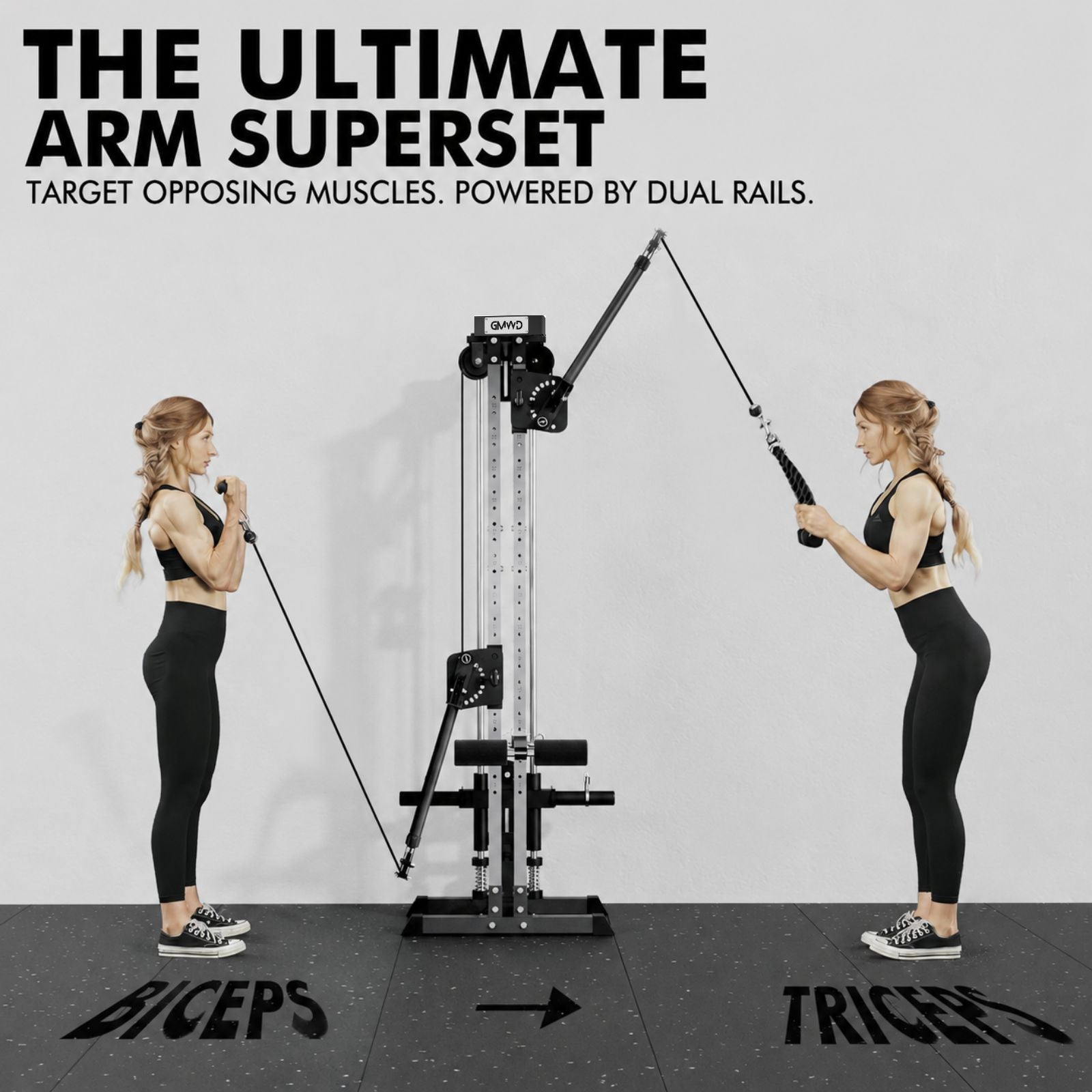

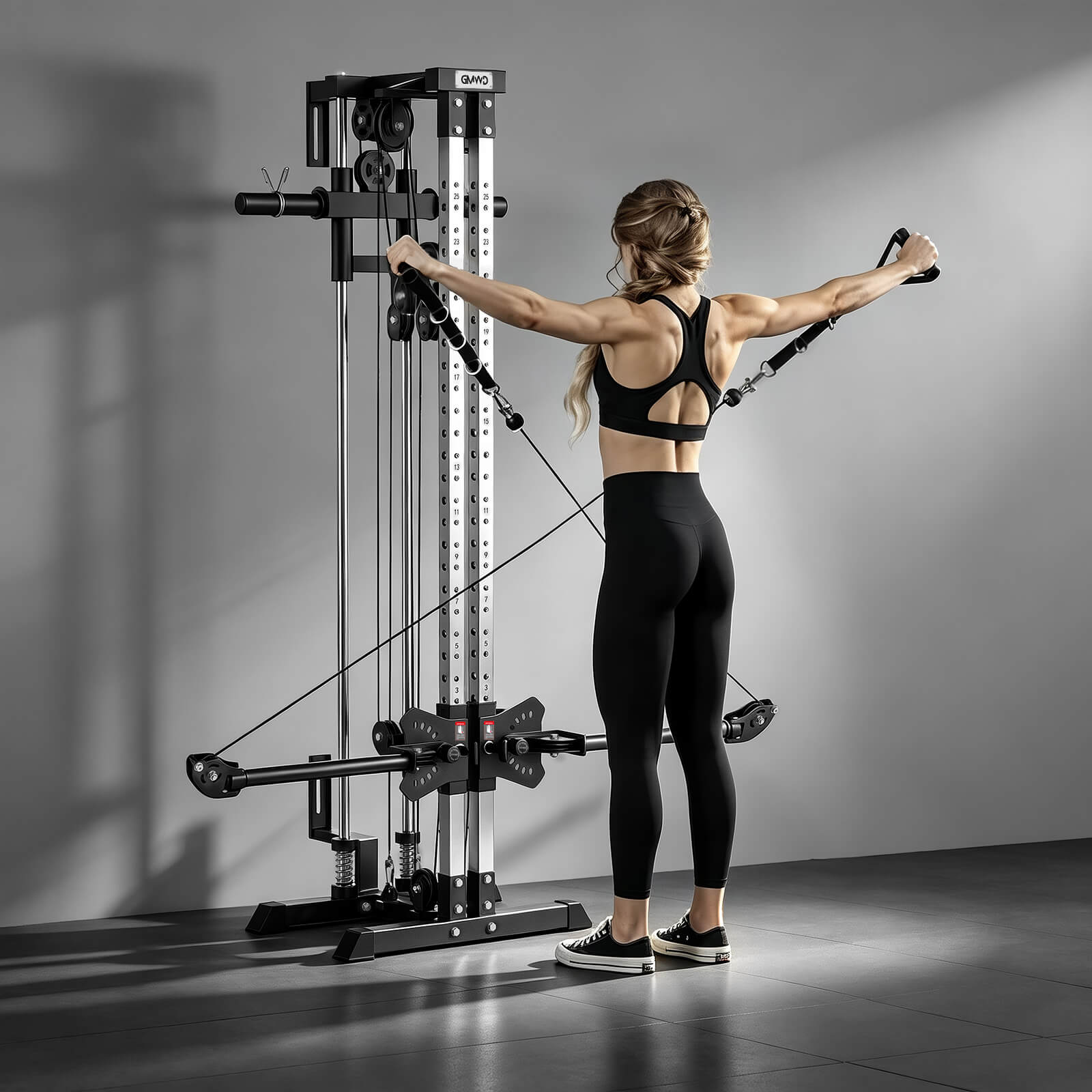

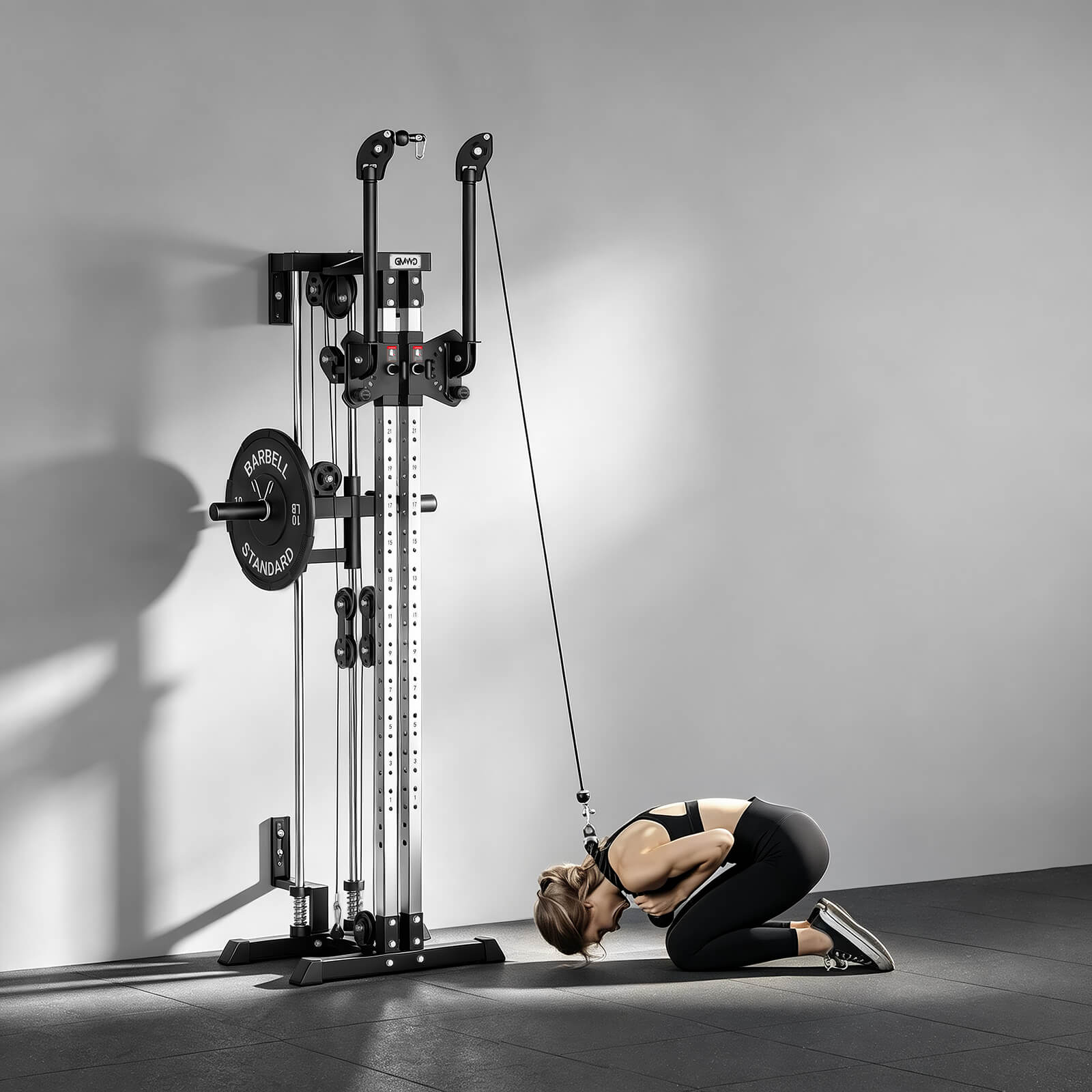

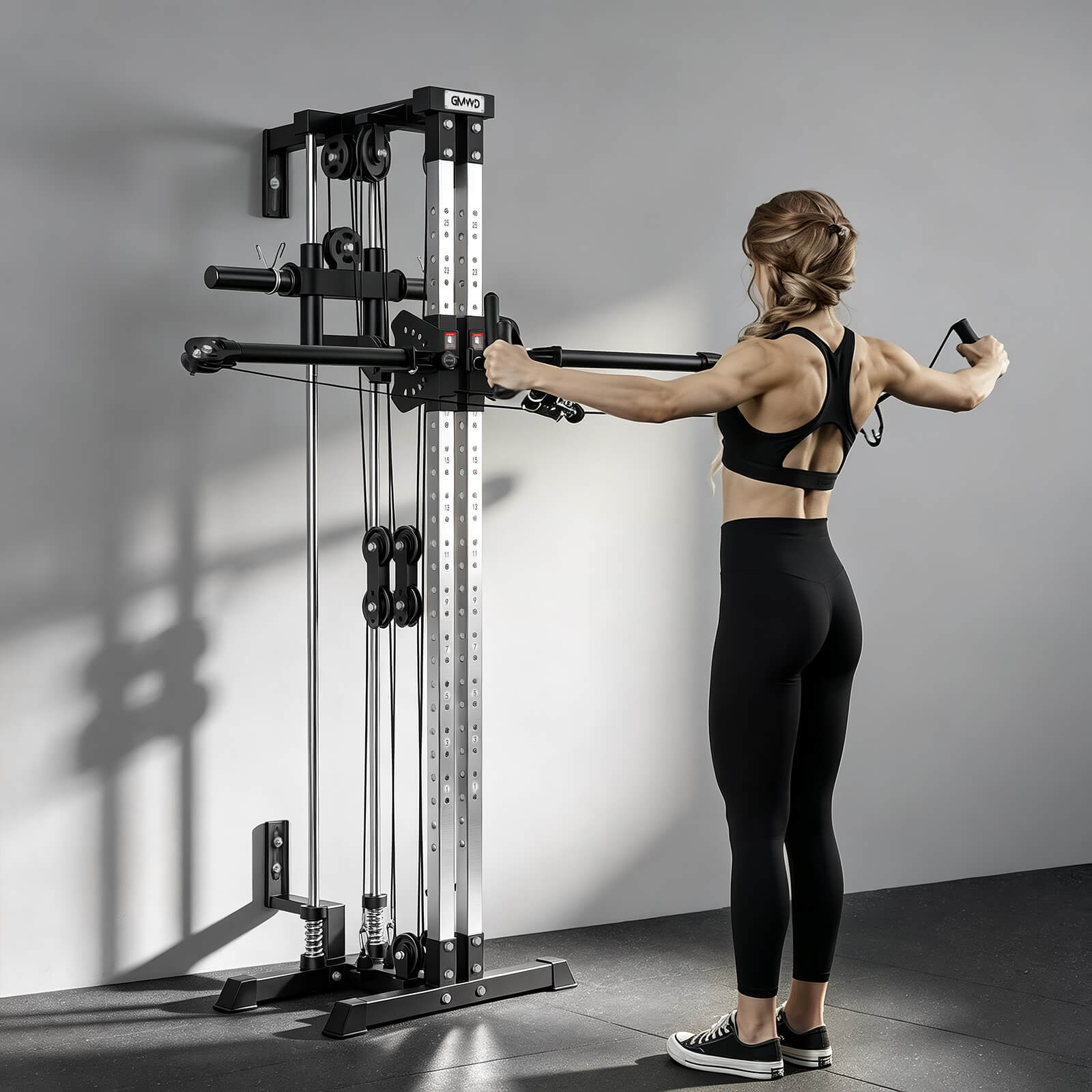

The CC9 brings multi-angle cable training to one compact, wall-mounted station, supporting presses, fly movements, rows, pulldowns, raises, curls, and core work. Position each arm independently to match different exercises, user heights, and training angles.
A shared 400 lb plate carriage, selectable 2:1 and 1:1 cable ratios, and compatibility with 1" and 2" plates give you flexible resistance using the weights you already own.
KEY FEATURES

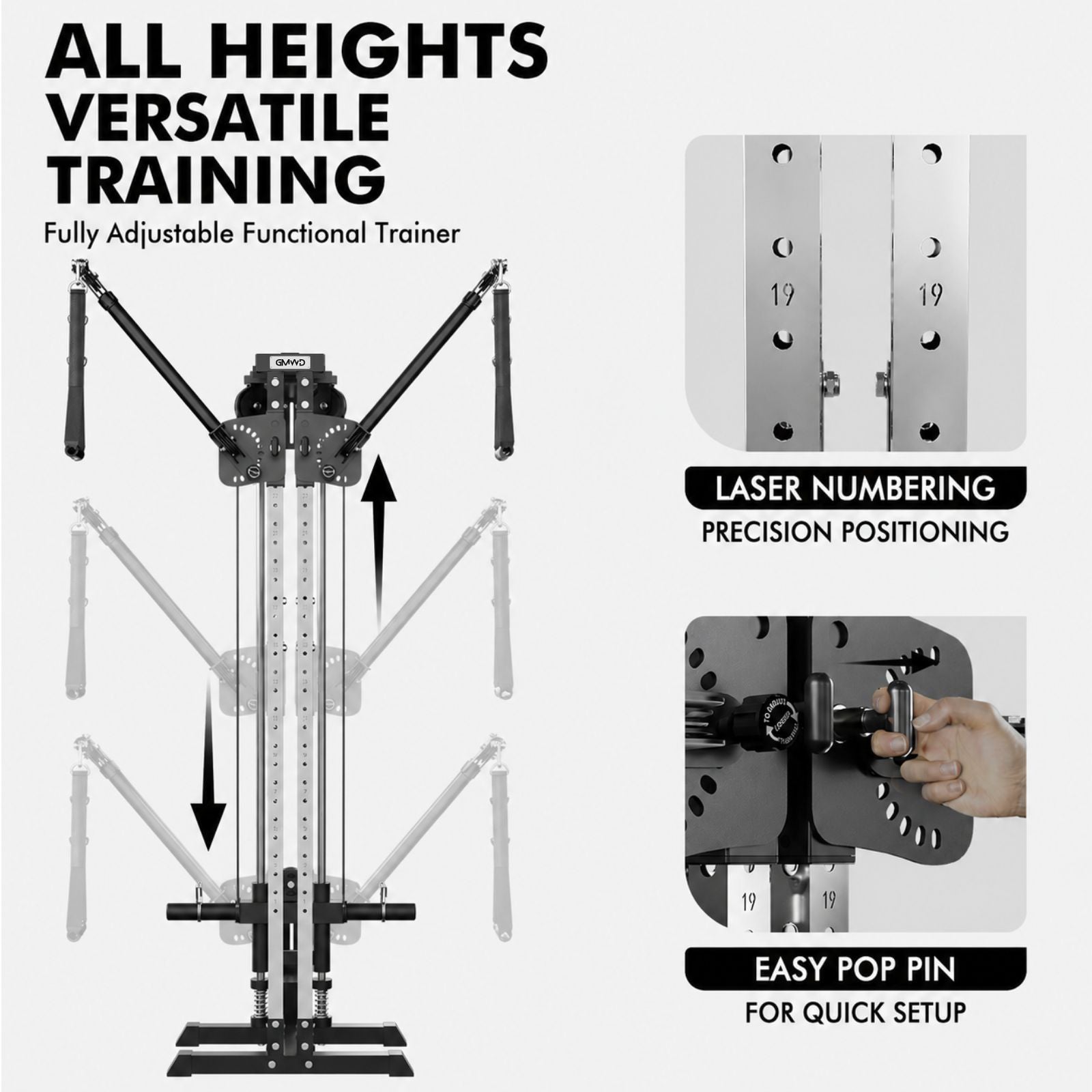

Train Low, High, or Anywhere Between

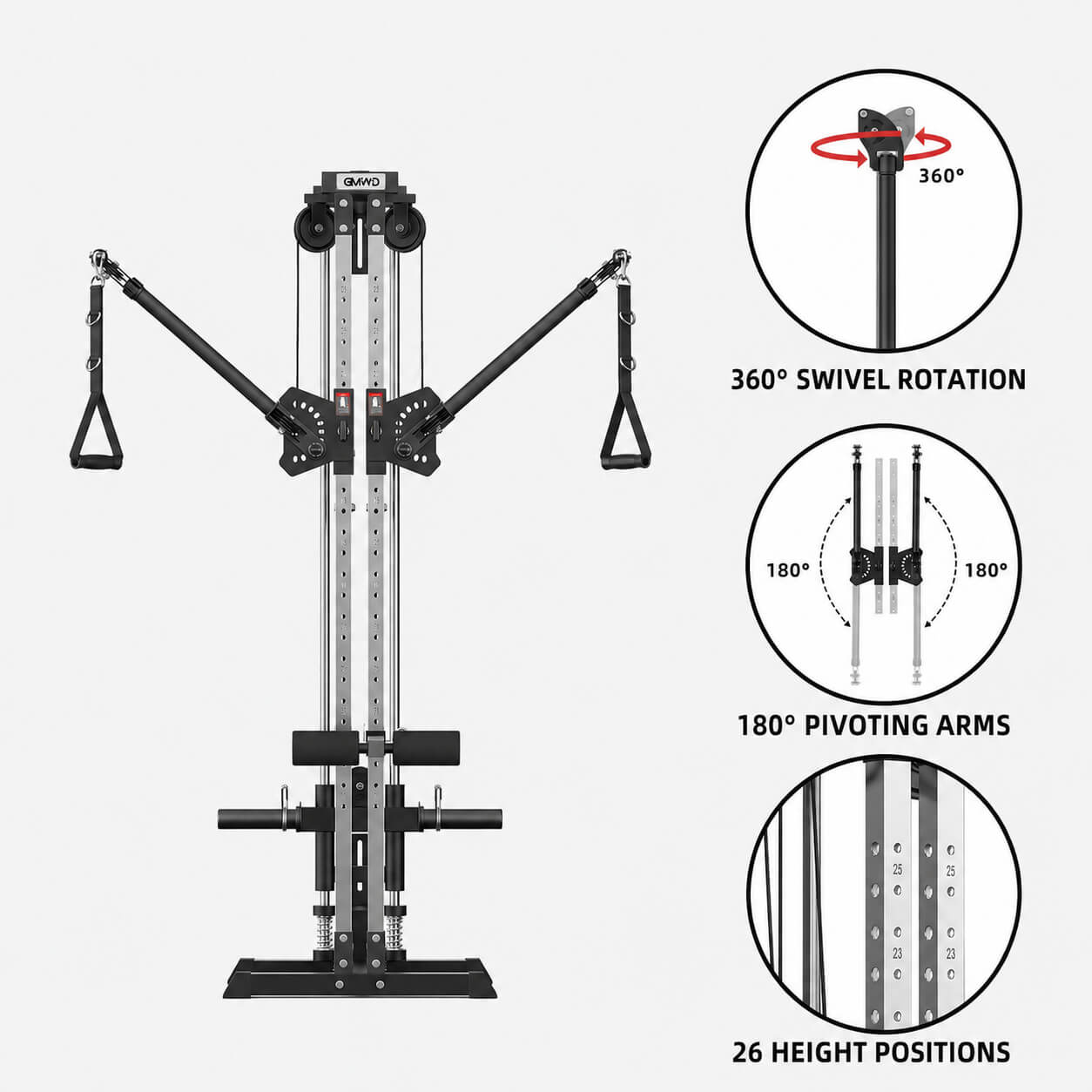

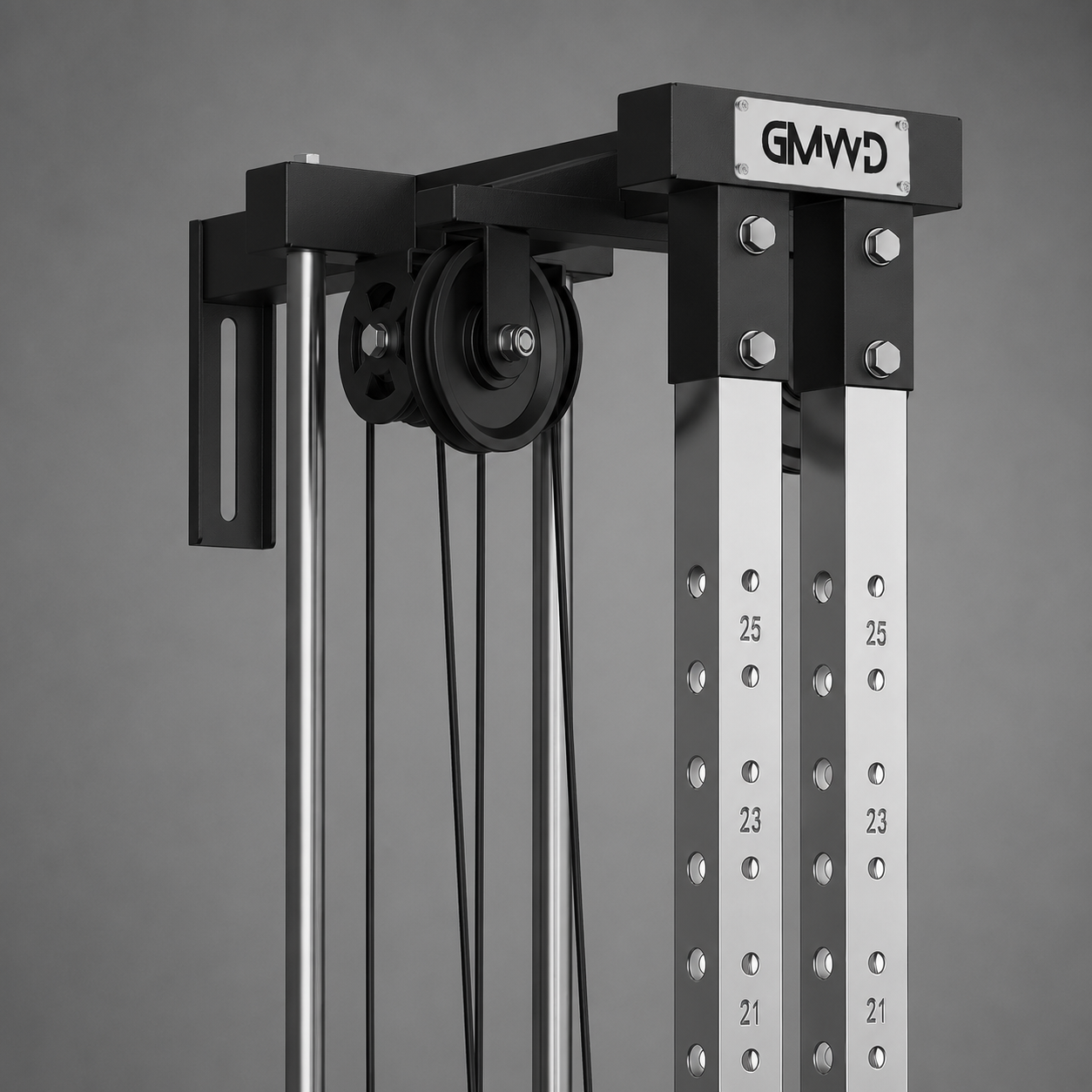

Each arm offers 26 height positions and laser-numbered uprights for repeatable setups. Move one side high and the other low, match both sides for bilateral exercises, or adjust them independently for staggered and unilateral movements.

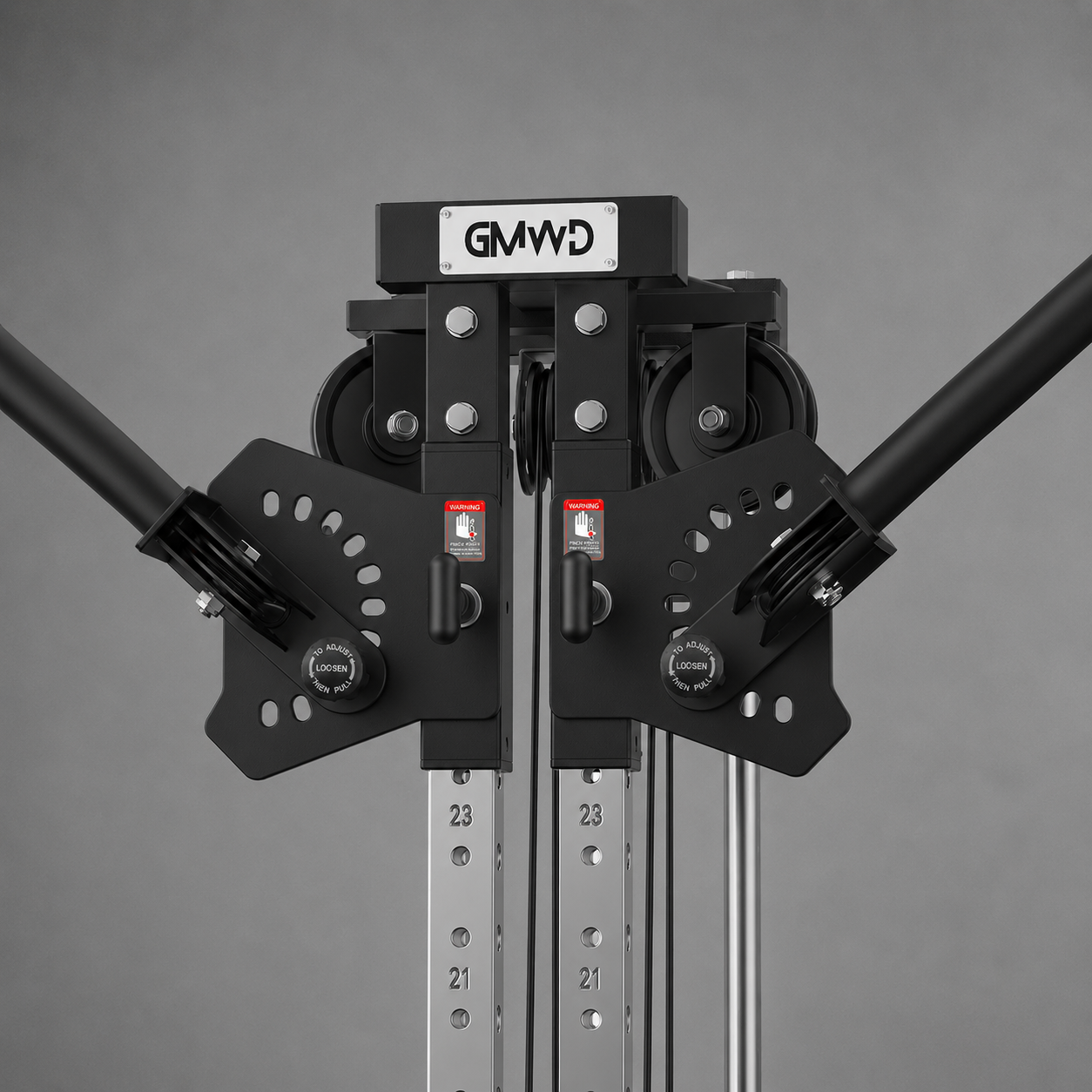

Eleven Locking Arm Angles

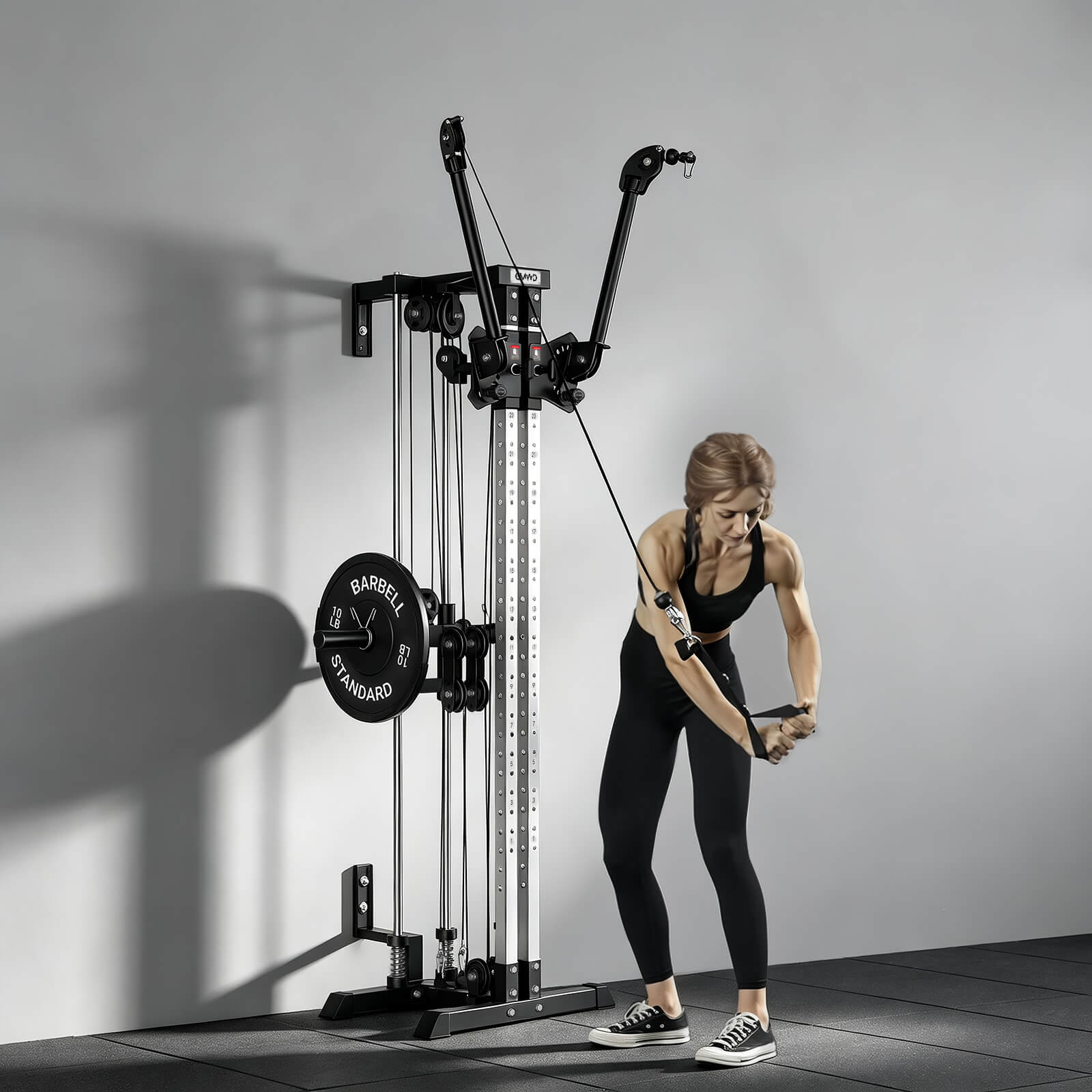

The two arms pivot through 180° with 11 locking positions each. This lets you move the cable origin closer to the setup needed for presses, fly movements, rows, raises, pulldowns, curls, and rotational exercises.
Two Cable Ratios for Different Training Needs

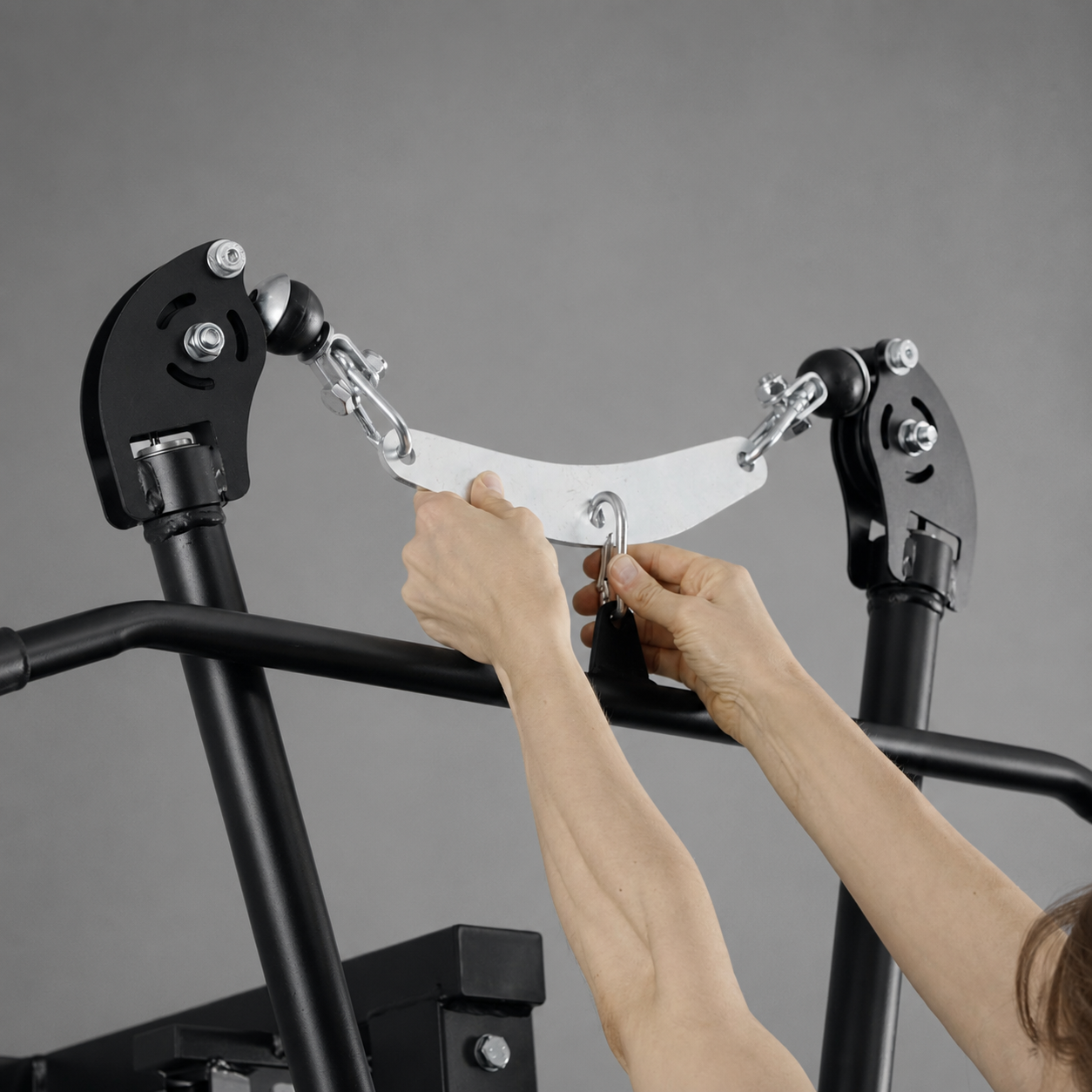

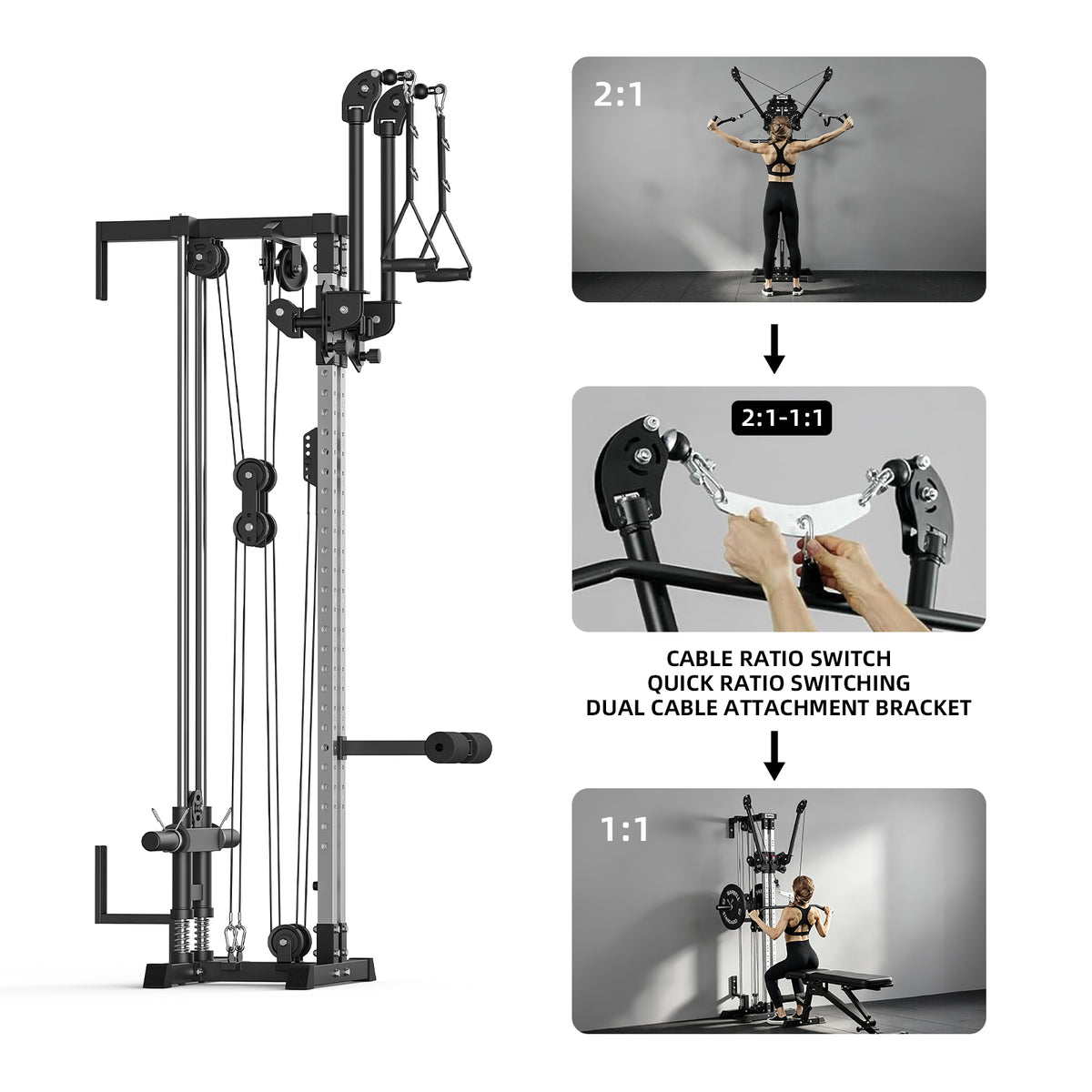

Use the 2:1 setup for controlled single-arm and bilateral movements with up to 200 lb per arm. Connect both cables with the included bracket for up to 400 lb at a 1:1 ratio—ideal for heavier rows, pulldowns, and strength-focused exercises.

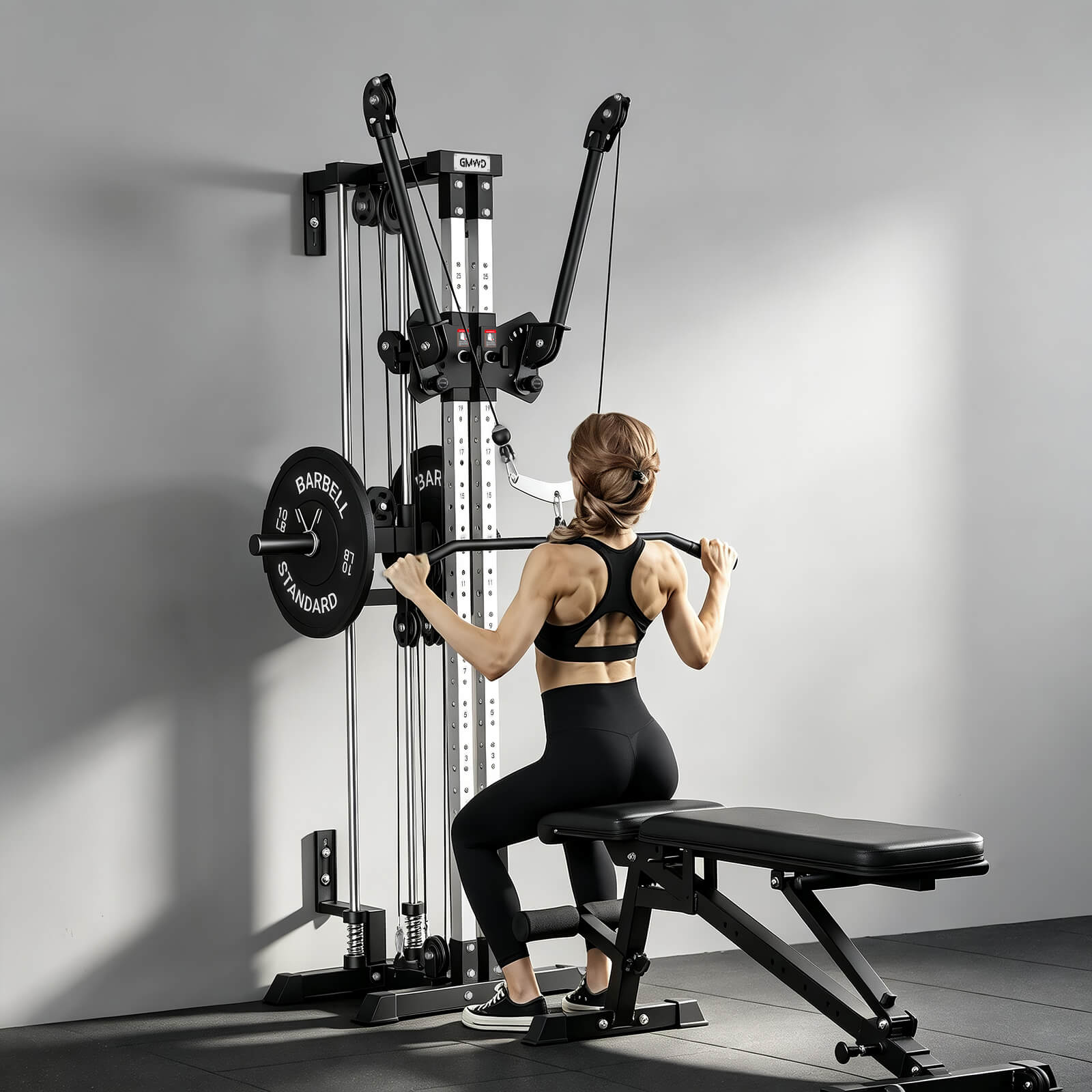

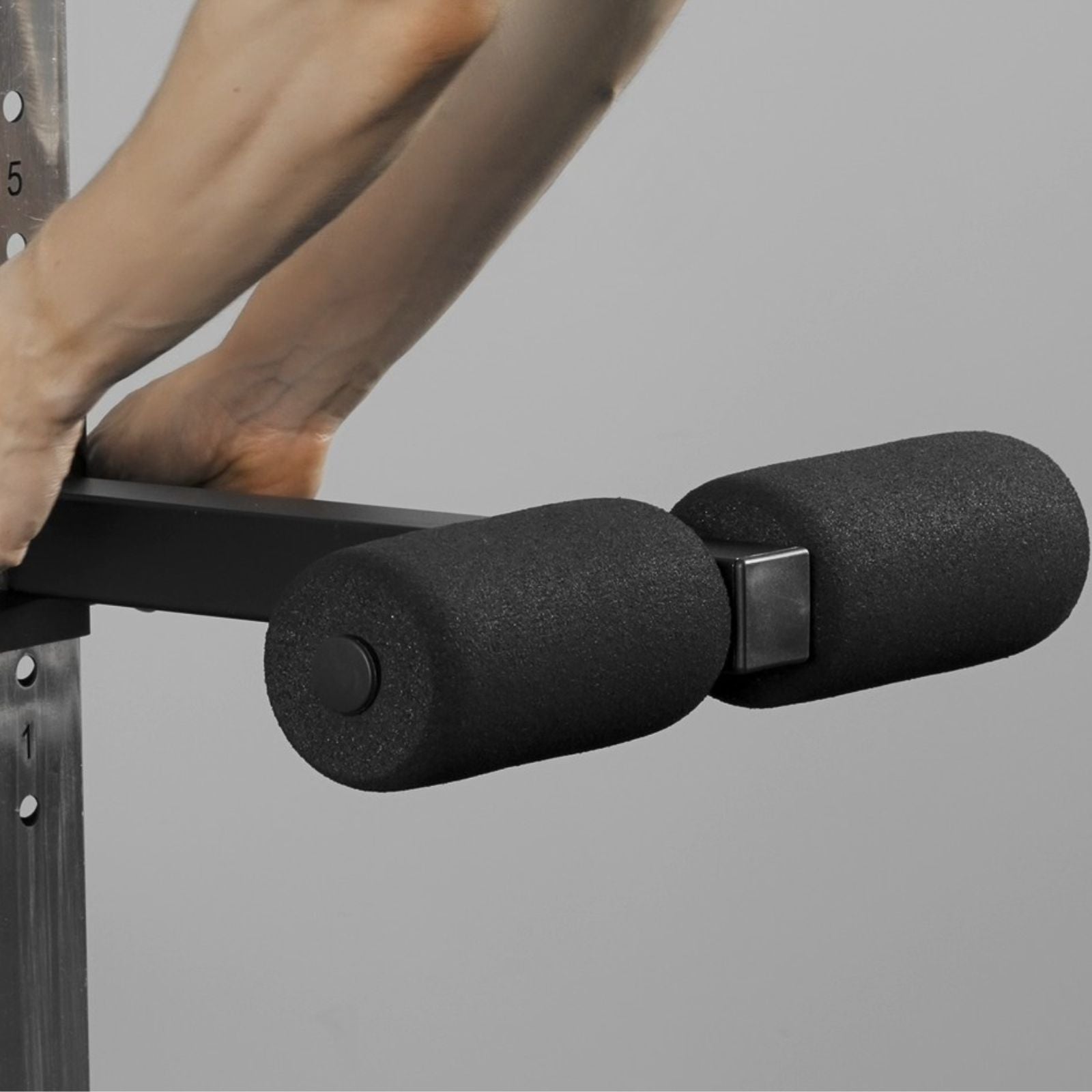

Stay Anchored During Pulldowns

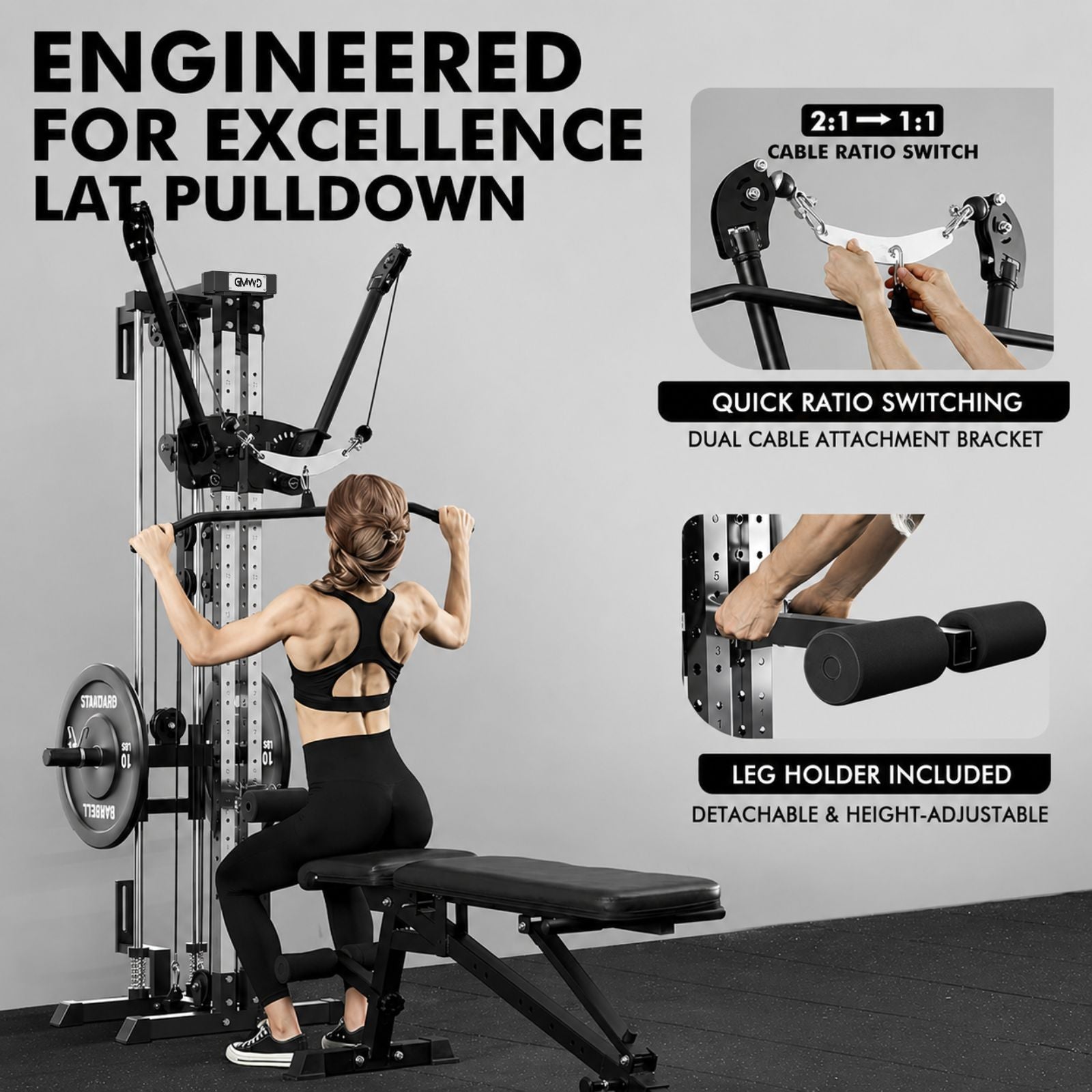

Position the padded leg holder across your thighs for a more stable lat pulldown setup. It helps keep your lower body planted as resistance increases, while the pin-secured design removes quickly when you switch exercises.

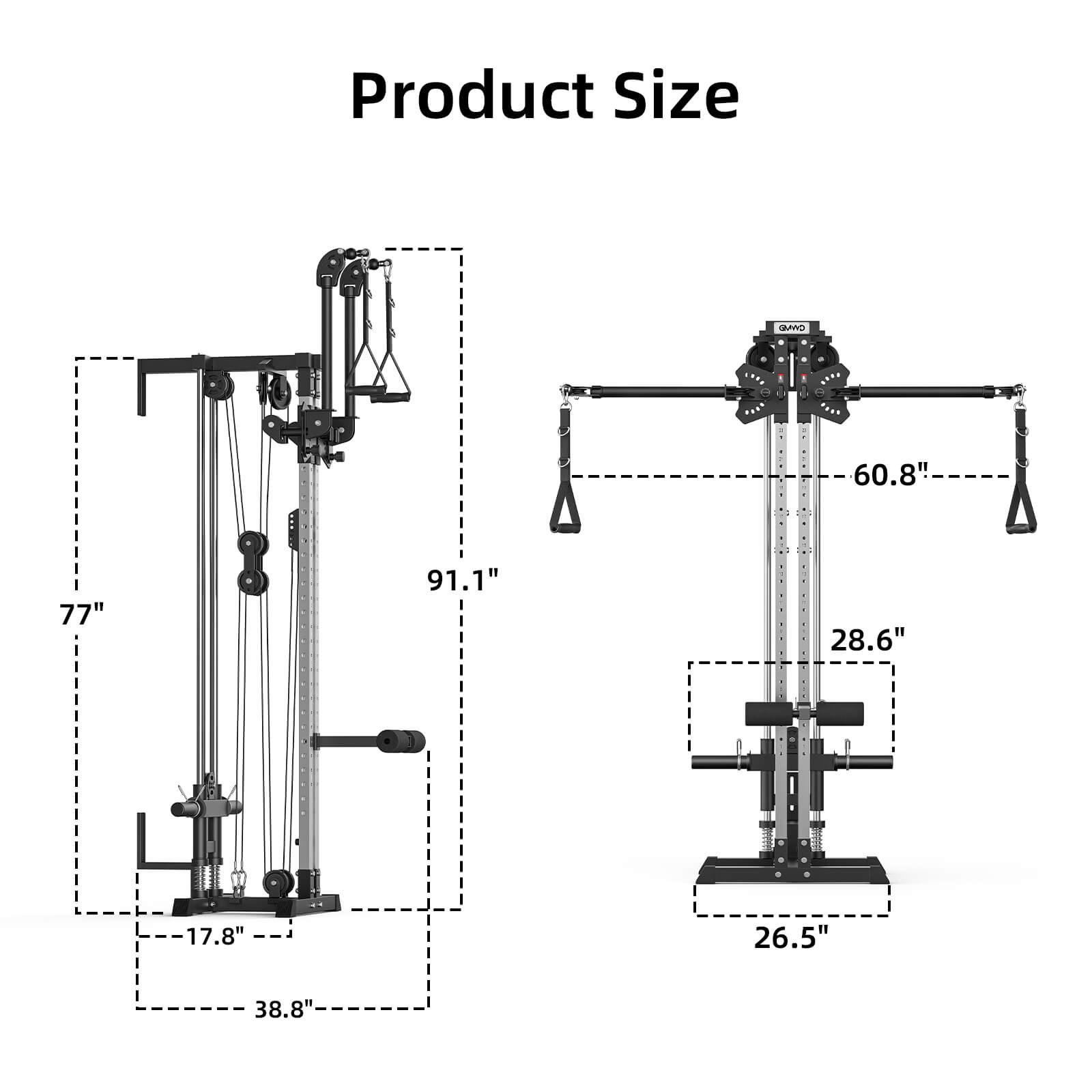

Will It Fit Your Space?
Plan your setup before delivery.
- Base Footprint: 26.5" W × 17.8" D
- Depth From Wall: 38.8"
- Maximum Training Width: 60.8"

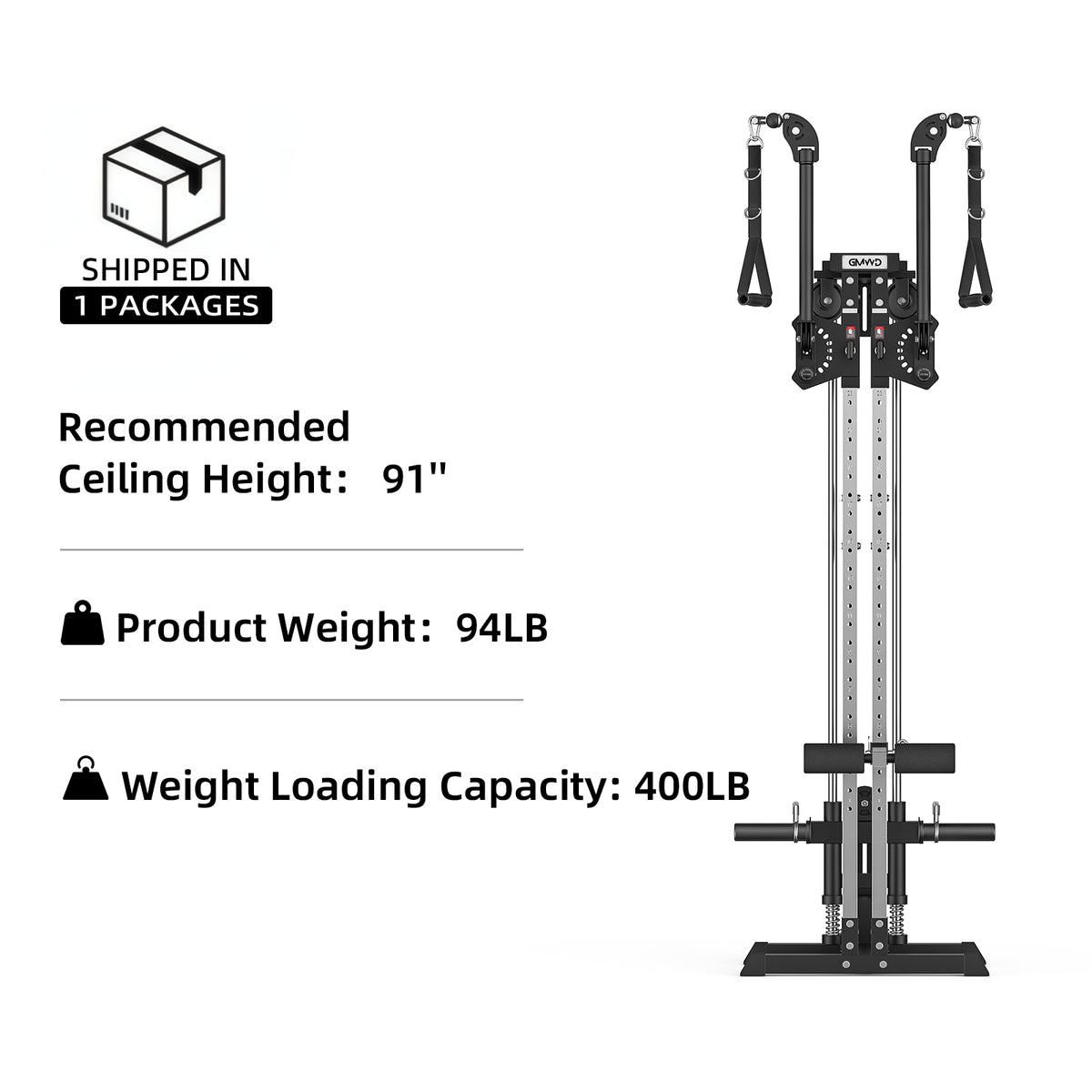

- Required Height: 77" frame height; 91.1" with an arm fully raised
- Wall Requirement: Mount to wood studs or concrete/masonry—never drywall alone.
400 lbs
2:1 or 1:1
94 lbs
1" standard and 2" Olympic plates
2" × 2" 14-gauge steel
105.9"
1
78.9" × 13.4" × 8.9"
106.9 lb / 48.5 kg
Frame lifetime, parts 6 months
FAQ
What wall types are supported?

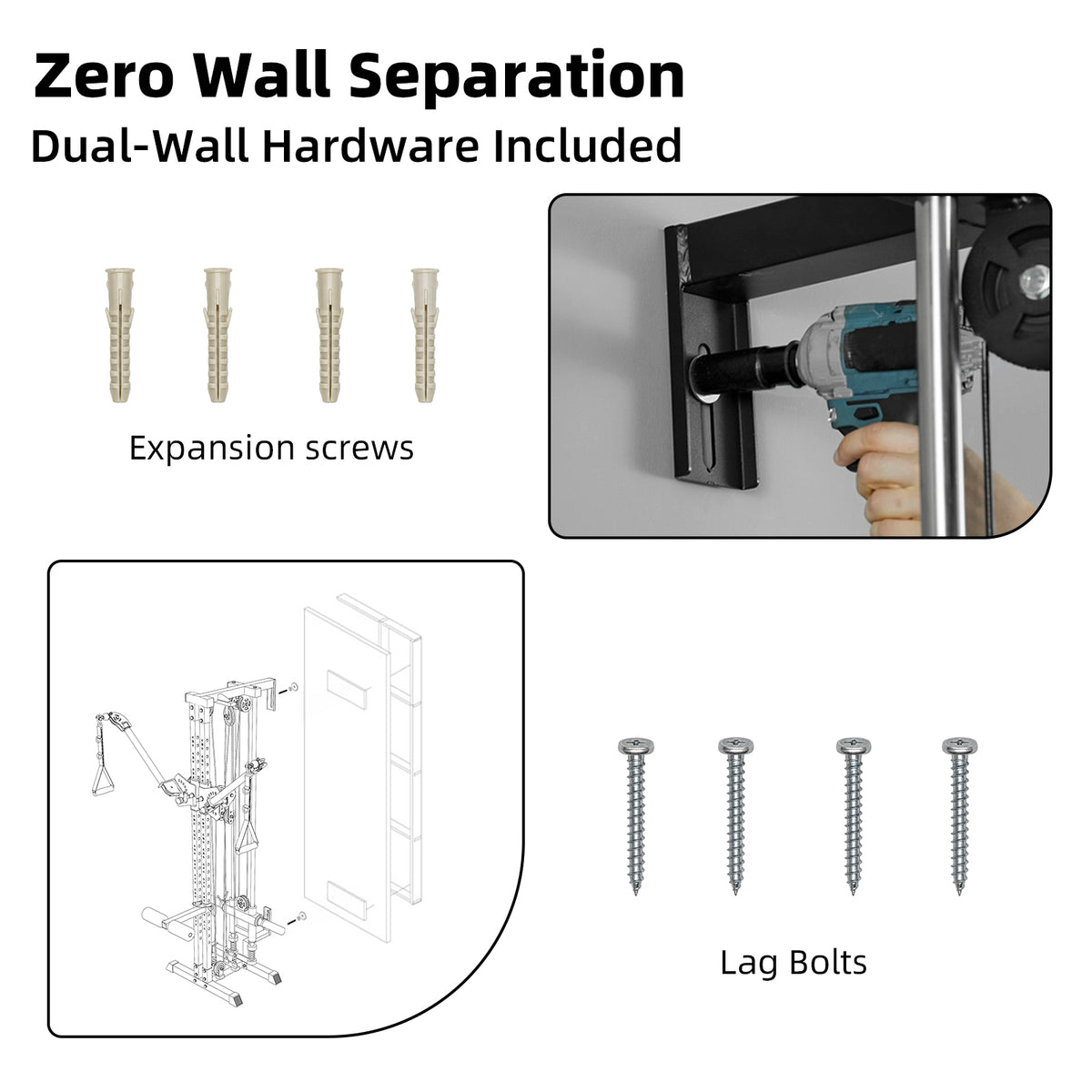

For wood stud installation, use the supplied wood screws. For concrete or masonry installation, use the supplied plastic wall anchors and wood screws.
The wall must be structurally sound and suitable for exercise equipment installation. Do not mount the CC9 to drywall alone. If you are unsure about your wall structure or fastener suitability, consult a qualified installer before installation.
Does the CC9 have to be mounted to a wall?
Yes. Wall mounting is required. The machine does not require floor anchoring.
Do the two arms use independent resistance?
No. The arms can be positioned independently at different heights and angles, but they share one plate carriage. When both handles are used simultaneously, the resistance is shared between them.
How many people are needed for assembly?
Assembly requires at least two people. Read the complete assembly and wall-mounting instructions before beginning.

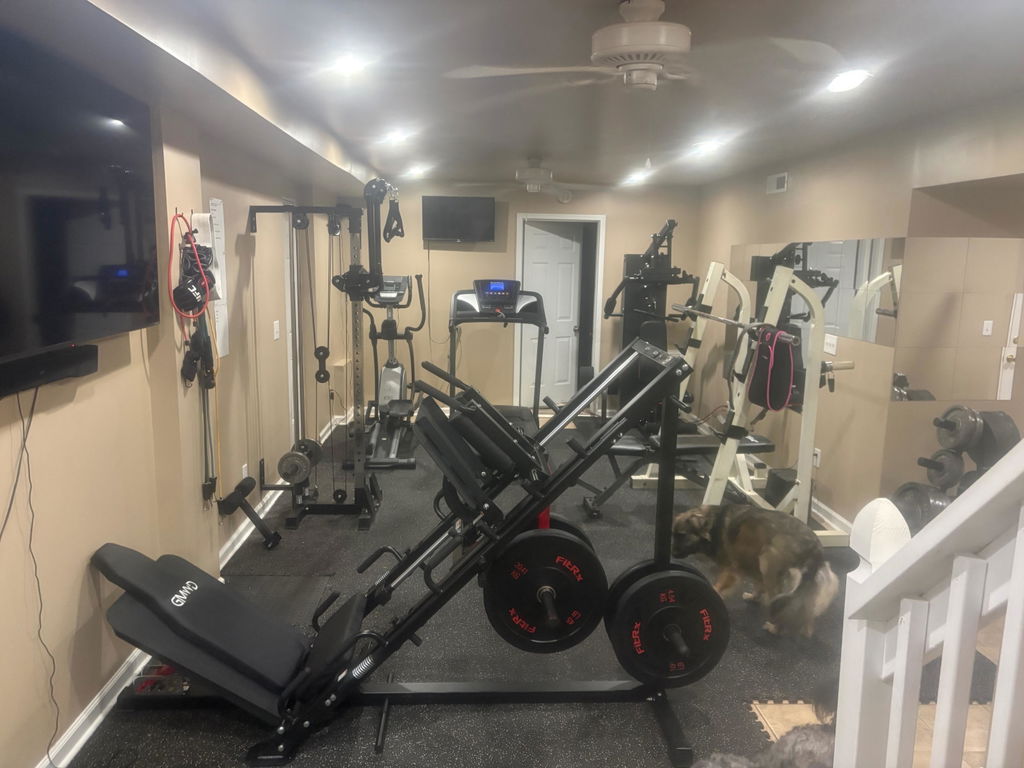

I own several GMWD equipment, and this piece gets used almost every day. I use it on back day, chest day, arm day, and shoulder and ab day. By far the best overall piece of equipment I have, and it takes up very little space

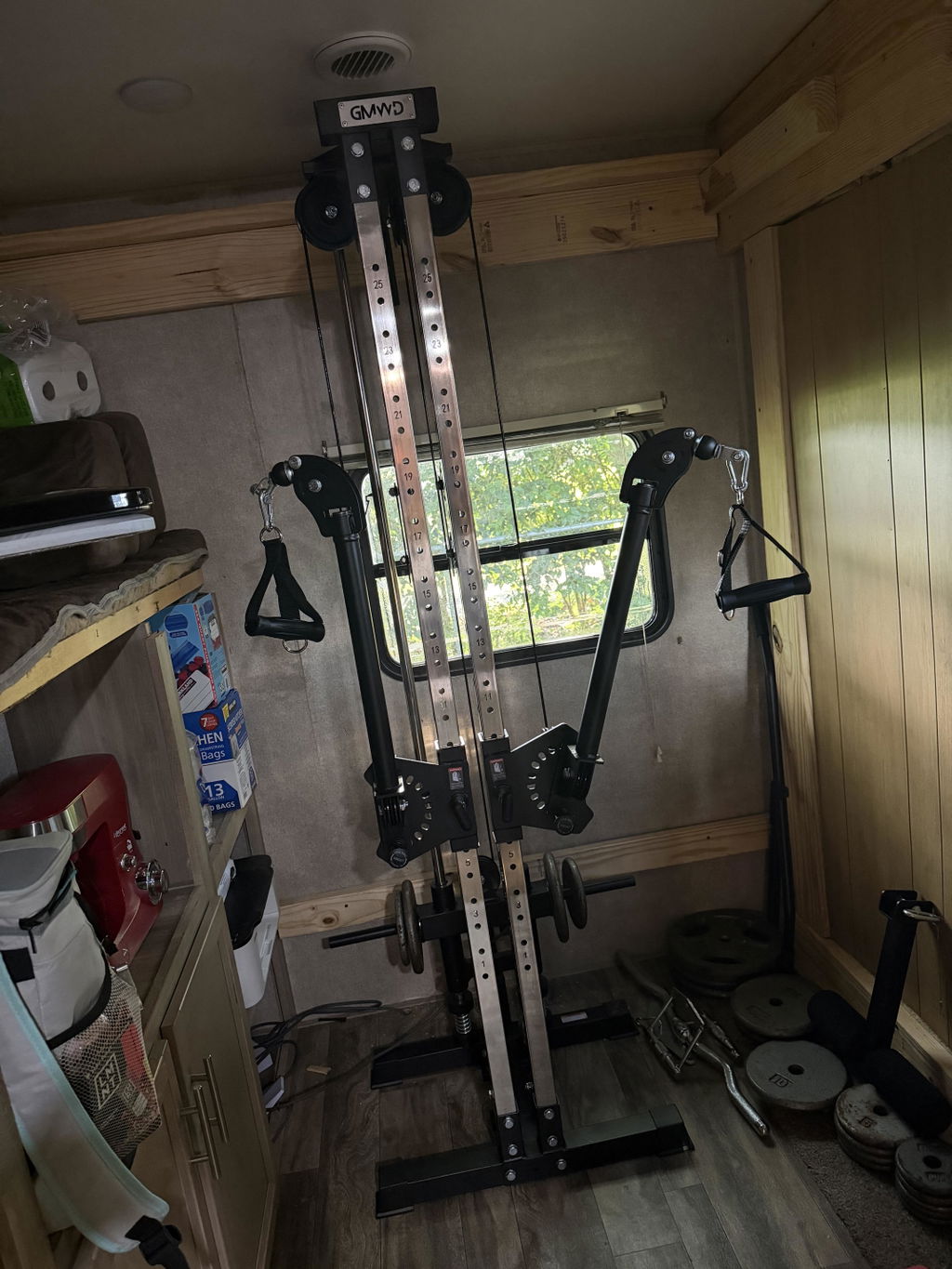

Awesome trainer! Bought it to put in our camper for on the go and its great for a small space!
